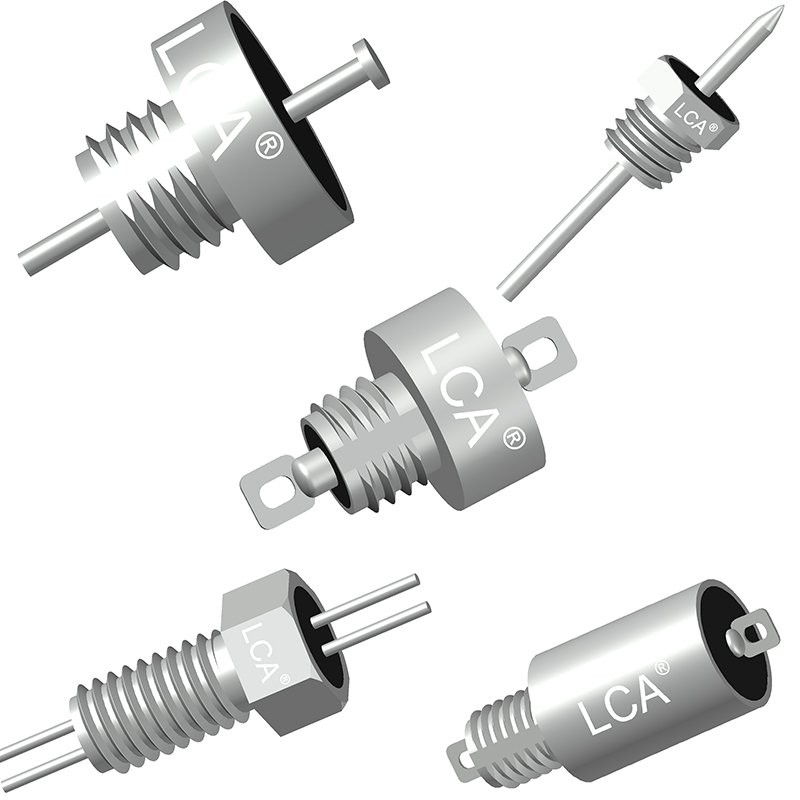

Screw feed through EMI filters
Screw type EMI Filters are feed through EMI filters with T type circuit structure, containing a feed through ceramic capacitor with an extremely high self resonating frequency and ferrite beads.
Therefore, the filters can efficiently suppress EMI over a wide range band up to GHz without a significant decrease of insertion loss which causes by coaxial resonance. Also, they have high reliability with resin-sealing that has high resistance against humidity and thermal resistance.
S3.3 M2.5 series:
SPECIFICATIONS | L3325 |
Capacitance | 10pF-0.1uf |
Rating Voltage | 10VDC-100VDC |
DWV | 75VDC-300VDC |
Current | 7A |
I.R.100vdc | 3000MΩ-10GΩ |

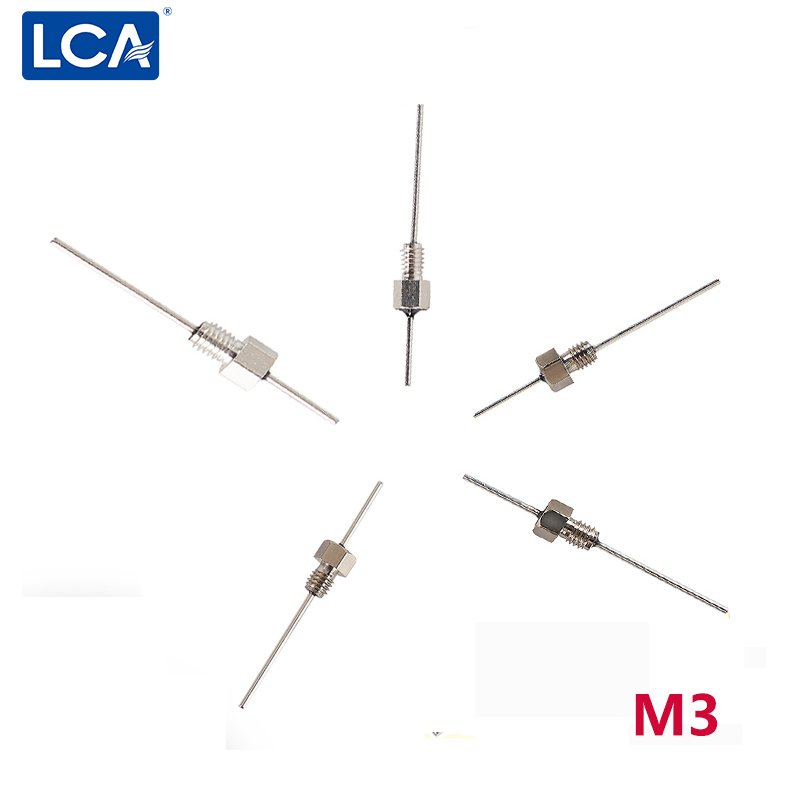

S4 M3 series:
Part No | Spec. | Vol. |
L4030-004 | 1000pf | 50v |
L4030-007 | 100pf | 100v |
L4030-008 | 0.01uF | 50v |
L4030-011 | 0.1uF | 16v |
L4030-032N | 3300pf | 100v |
L4030-034N | 1000pf | 100v |

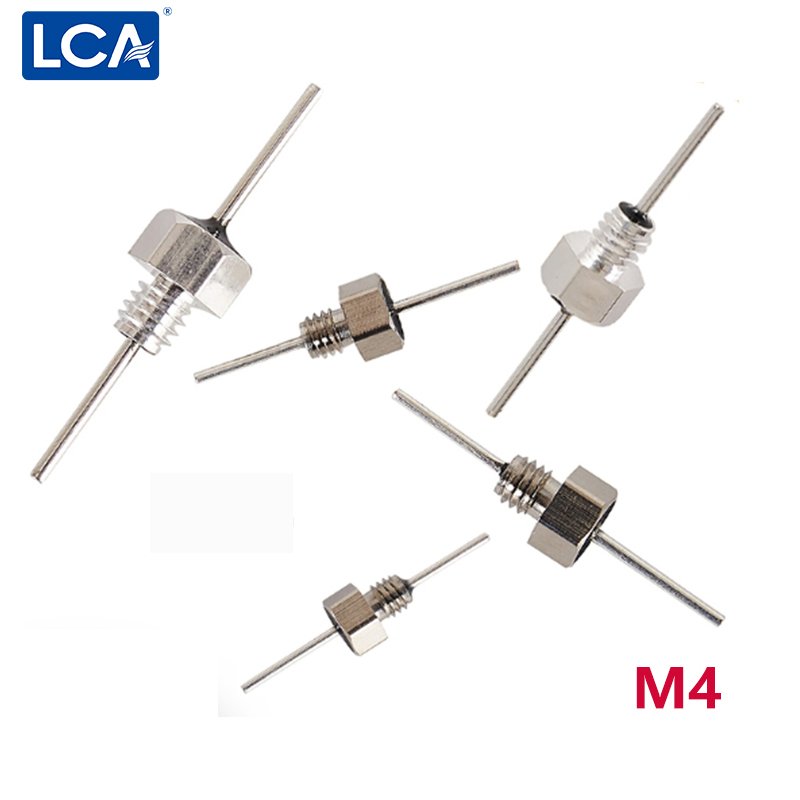

S5 M4/S6 M4 series :
Part No. | Spec | Vol |
L6040-001 | 1000pf | 100v |
L6040-008 | 0.01uF | 100v |
L6040-010 | 0.1uF | 100v |
L6040-011 | 3300pF | 100v |

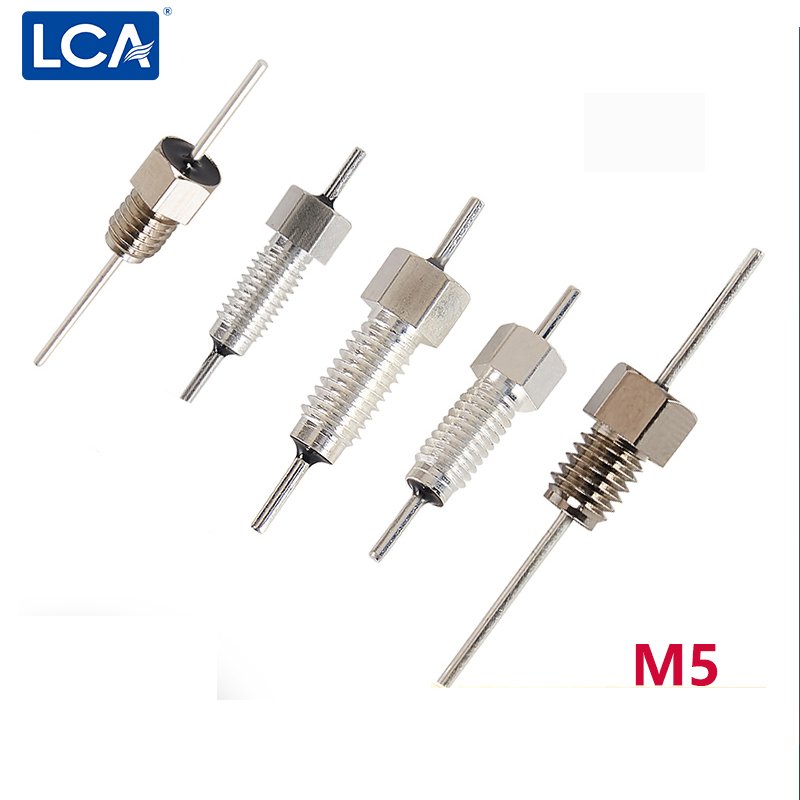

S6 M5/S8 M5 series:
Part No | Spec | Vol |
L6050-016N | 1000pf | 200v |
L6050-023N | 10000pf | 250v |
L6050-021N | 1500pf | 250v |

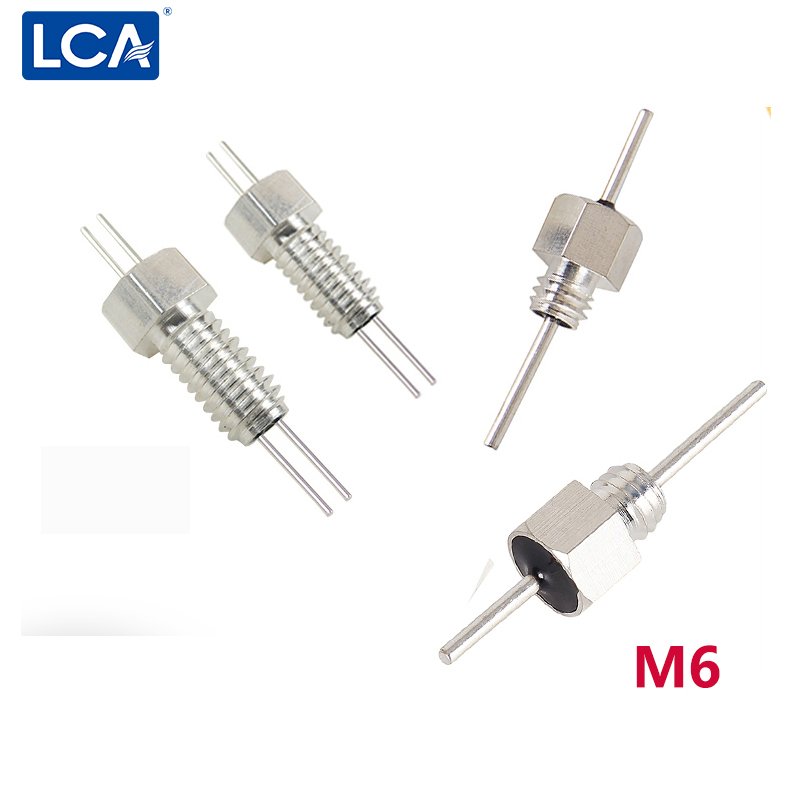

S8 M6 series:
Part No | Spec | Vol |
L8060-013A | 5000pf | 250v |
L8060-003AN | 4700pf | 50v |
L8060-018C | 2200pf | 250v |

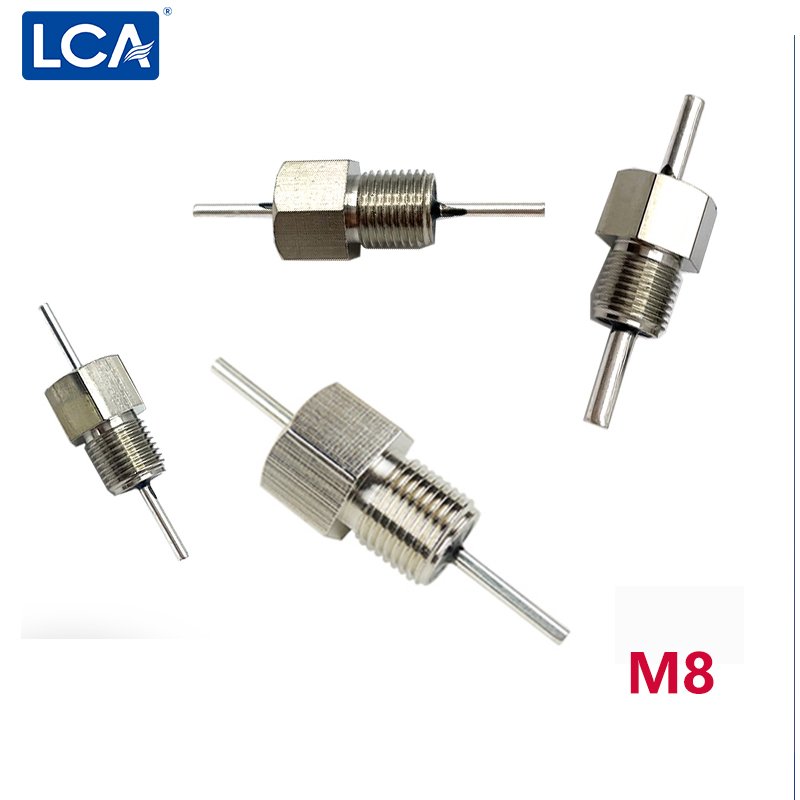

S10 M8 series:
SPECIFICATIONS | L10080 |
Capacitance | 1000pF-2.0uf |
Rating Voltage | 100VDC-500VDC |
DWV | 300VDC-2500VDC |
Current | 20A-50A |
I.R.100vdc | 50MΩ-3000MΩ |
Applications
- Panels
- Bulkhead Filter Arrays
- Rugged
- Discoidal construction
- High performanc

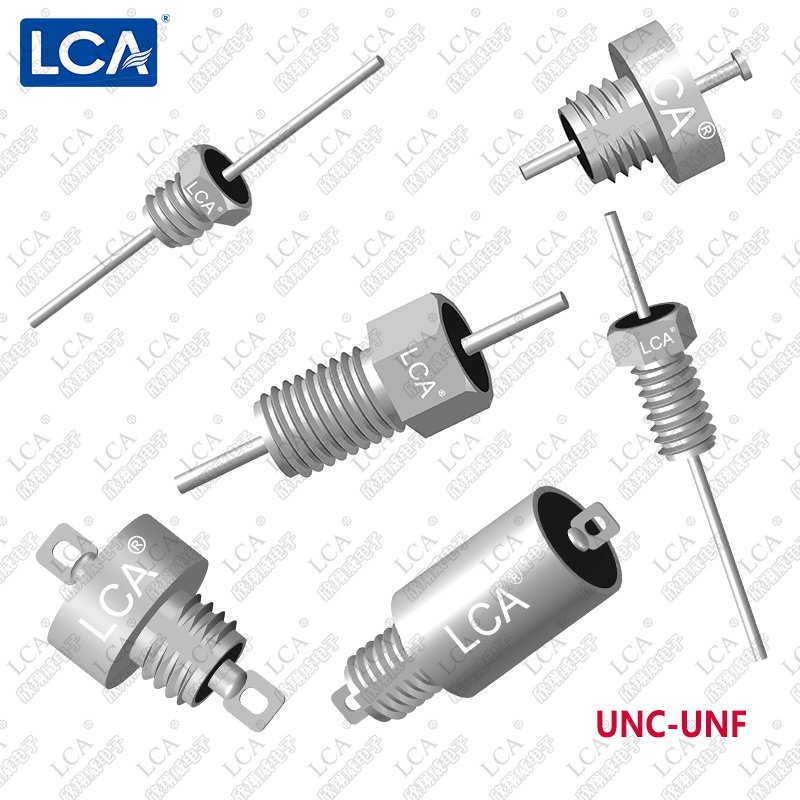

UNC/UNF thread
M4-40UNC-2A |
M8-32UNC-2A |
S8 M1/4-36UNS-2A |
M1/4-28UNF-2A |
S6 M12-28UNF-2A |
M12-32UNEF-2A |
S4 M6-32UNC-2A |
S5 M8-36UNF-2A |
S9 M5/16-32UNEF-2A |
M5/16-24UNEF-2A |
